Reports Overview

Predictor produces a range of financial, life cycle funding and capital works program reports that can be embedded into organisational long term strategic asset management and short term capital works plans.

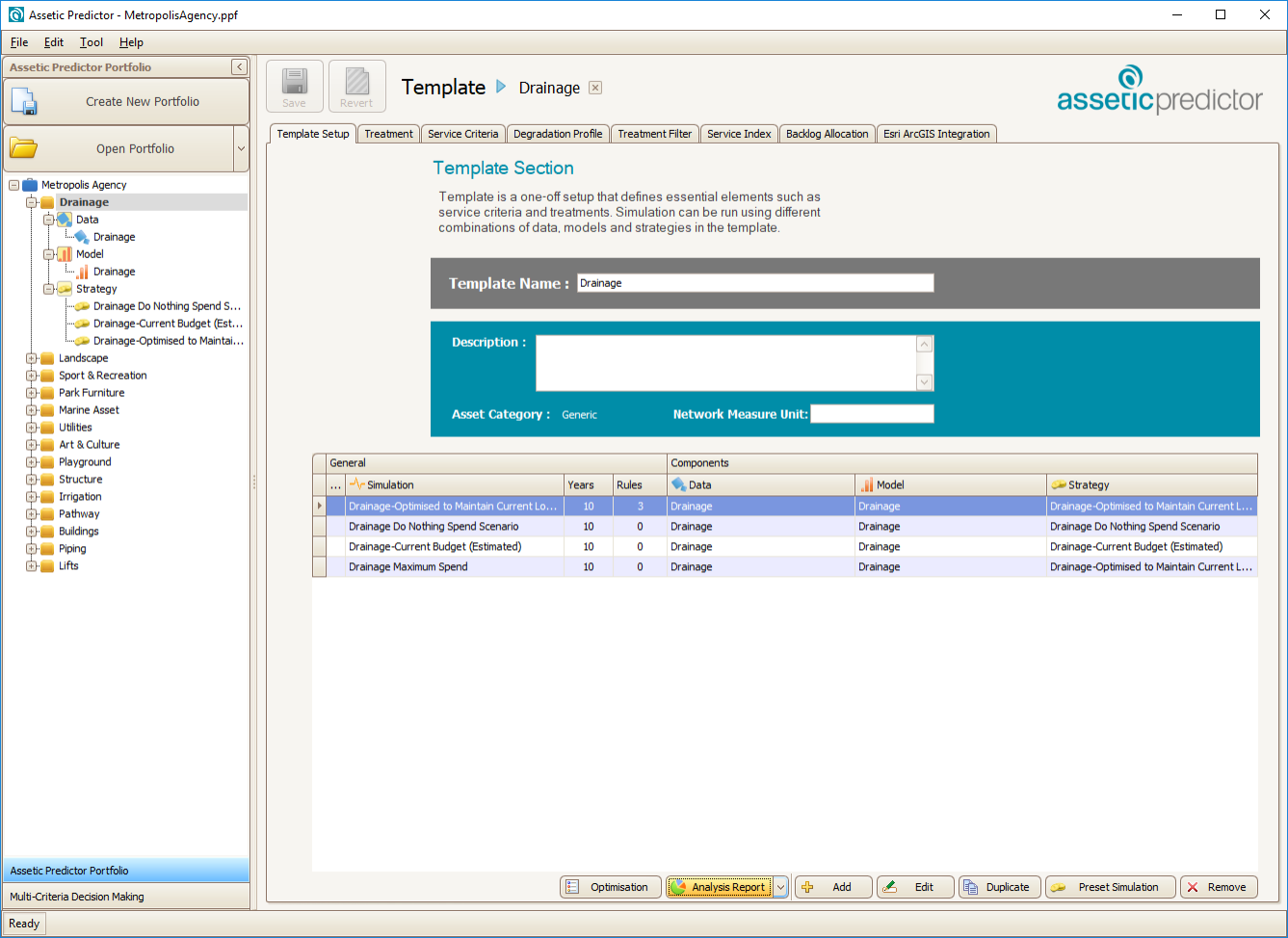

• Go to Template setup
• Click Analysis Report



To view a specific Report:

• Select the simulation setup you want to analyse.

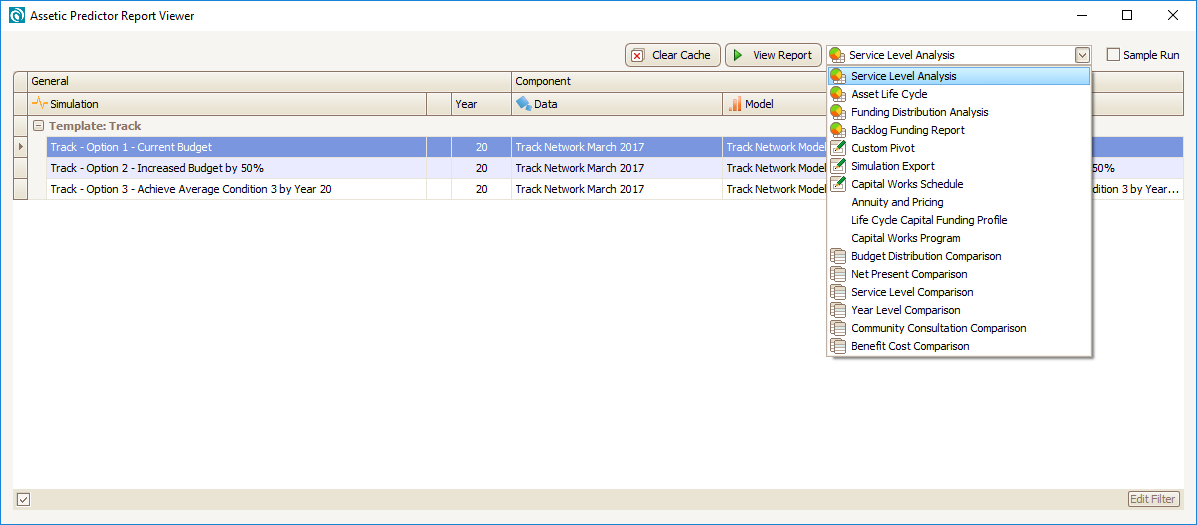

• Select the report using the drop down menu in the top right.
• After you select the report, click View Report
• Alternatively, some reports can be launched directly by clicking on the drop-down arrow on the Analysis Report button.
• The 'Sample Run' option is available for use when the Simulation's dataset contains over 5000 records, and if enabled will generate the selected report using a random 5% sample of asset stock data in conjunction with a proportionally reduced budget, which allows for quicker report generation outputs to assess likely outcomes when the dataset is large.



View Report opens a new screen to view the particular report selected. The following sections describe the different reports to view in Predictor.
