Grants Commission Report VIC

Information:

The Victoria Grants Commission (VGC) allocates revenue provided by the Commonwealth Government to municipal councils in Victoria according to the Local Government (Financial Assistance) Act 1995. The VGC is required to allocate these funds to councils in accordance with nationally agreed principles.



The Commission’s formula for allocating Local Roads grants is based on each council’s road length (for all surface types) and traffic volumes and includes a series of cost modifiers. Each year the commission gives councils the opportunity to provide information on the status of their roads, which is then used in the following year’s funding allocations.



Councils provide the Roads data in the format shown below (Section VGC3 (previously B1) and section ALG1 (previously B2) are attached in full at the end of the document):

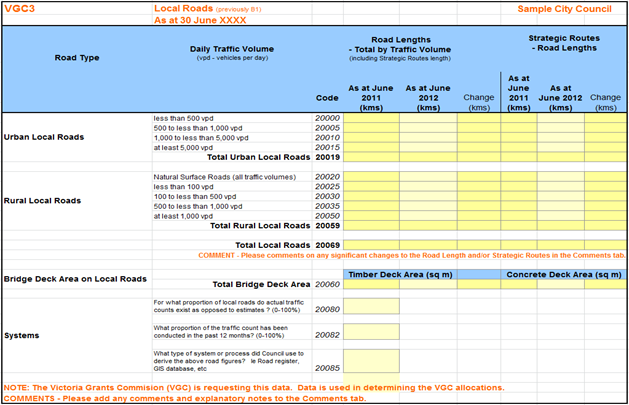

VGC3

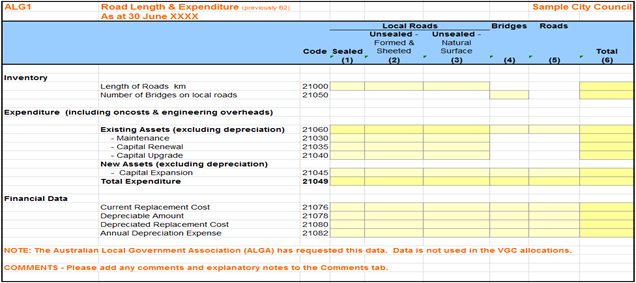

ALG1

Data required

The data required for the Grants Commission reports can be stored in Assetic myData and can be easily extracted from myData using the Advanced Search function.

Field Name

Field Name (Roads)

Lookup Value

Description

Classification

URBAN

 Data in this field can be obtained from the Grants Commission section in myData.s.

RURAL
Strategic Route

YES

 This data needs to be populated as per Councils records.

NO
Status  IN USE This is the status of the Bridge/Road, whether it is in use or not. The data for this can be obtained from the Register of Public Road or from the "Legislation" section under the "Attribute" tab.
 NOT IN USE
Hierarchy Code 21000 The hierarchy code details are listed in the table below. All the Roads are tagged with hierarchy code of 21000.
21050
Traffic Code         20000 The traffic code details are listed in the table below. These codes are populated using data from Average Annual Daily Traffic (AADT) field.
20005
20000
20015
20020
20025
20030
20035
20050
Surface Type SEALED Data for this field is obtained from the Surface Type field in the Attribute tab.
FORMED & SHEETED
NATURAL SURFACE



Data Extraction

This document provides details about how to populate the necessary information into the Grants Commission tab in myData Roads Asset Category and how to use the Advanced Search function to extract data.

One data is available, it is easy to transfer into the Grants Commission report format for submission.

The following fields are available in the myData Roads Attributes tab:

All the fields listed above should be populated with standard values.

For Victorian Councils these fields should have values as outlined below:

Hierarchy Code:

Local Roads  - All Roads

21000

No of Bridges on local Roads

21050

Traffic Code:

Urban Local Roads:

Less than 500 VPD

20000

500 to less than 1,000 VPD

20005

1,000 to less than 5,000 VPD

20010

At least 5,000 VPD

20015

Rural Local Roads:

Natural Surface Roads (all traffic volumes)

20020

Less than 100 VPD

20025

100 to less than 500 VPD

20030

500 to less than 1,000 VPD

20035

At least 1,000 VPD

20050

 Note: VPD = vehicles per day



Section VGC3 – Data Extraction

Section VGC3 - All Local Road Lengths – Part 1

  • Go to Assets
  • Select Advanced Asset Search
  • Select Sealed Road Asset Category
  • Run an Advanced Search for the following fields:

Once the Search function has returned the results, group them as indicated below:

In Advanced Search under Aggregate Summary use the Sum option to sum up all the segment lengths under different Grants Commission Traffic codes.

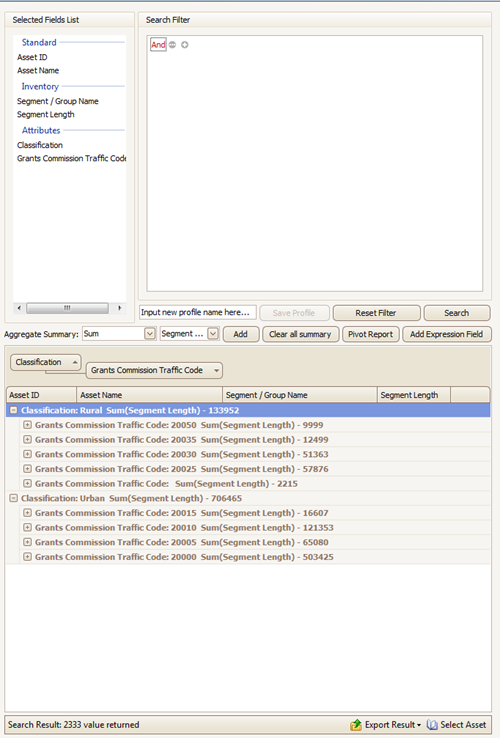

Preview of the Search Data

Populate the total length for each traffic code (including strategic routes) in the Section VGC3 of the report, with the information generated below:

Users can save this Search Profile

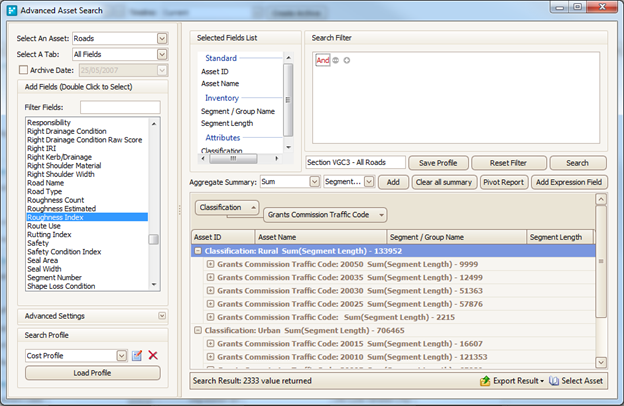

To save the Search Profile, enter the profile name in the Advanced Search dialogue box as shown below:

• Select Save Profile

Section VGC3 - Local Road Lengths – Strategic Routes Only – Part 2

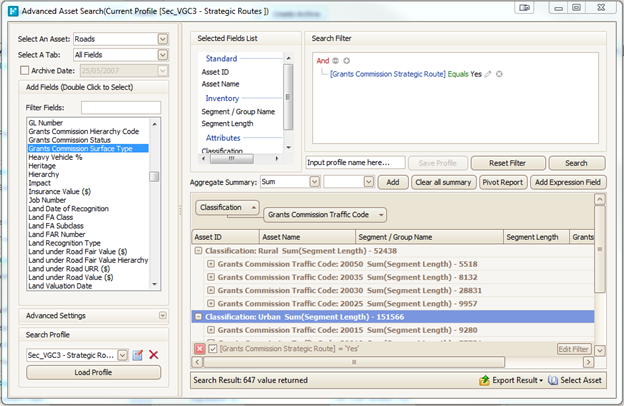

The procedure is similar to all local roads except a filter is used to extract strategic routes as shown below:

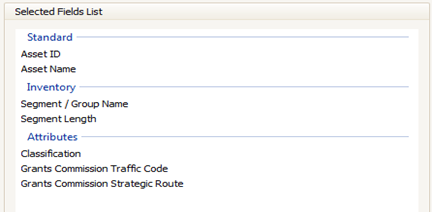

• Select following fields for Advanced Asset Search

• Populate the total length of strategic routes for each traffic code in Schedule B1 Report, with the information generated below:

• Save the profile with an appropirate name for future use

Section ALG1 - Data Extraction

Under Section ALG1, lengths of roads have to be reported by their surface types.

• Run an Advanced Search and search for the following fields:

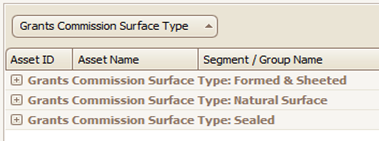

Once the Search function calculates the results by Surface Type as indicated below:

• In Advanced Search under Aggregate Summary use the Sum option to sum up all the segment lengths under different Grants Commission Hierarchy codes

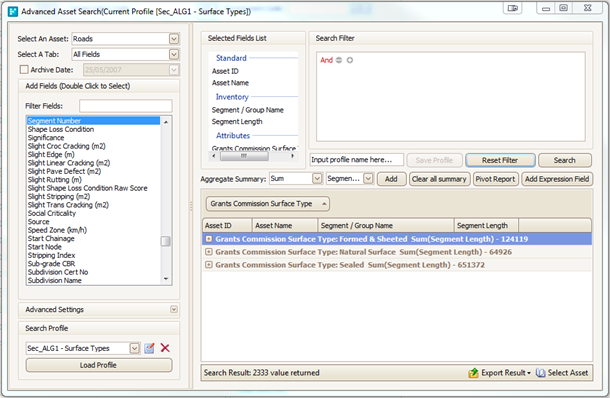

Preview of the Search Data

• Populate the total length for each hierarchy codes in ALG1 section of the report with the information generated below:

Save the Search Profile for future use

All these saved search profiles can be reloaded as and when required. To load a search profile, select the relevant profile name from the list and click Load Profile as shown below
