Recommendation & Example

Recommended naming of myData databases

Type

Database
Name (SQL)

Reporting Data Source (SQL)

Reporting
Database (SSAS)

Shared Directory

Purpose

Overwritten

Production

myDataProduction

myDataProdReportRDS

myDataProdReport

\\NetworkFileShare\myDataProduction

Holds current financial and asset records

No

Preproduction

myDataPreProduction

myDataPreProdReportRDS

myDataPreProdReport

\\NetworkFileShare\myDataProduction*

Testing outcomes of valuation and inventory changes

Periodically by Production**

Training

myDataTraining

No

No

\\NetworkFileShare\myDataTraining

Training staff

*Can use Production shared data
**Not automatic, migration or overwriting need to be manually executed by an administrator



Example of Creating a Software Installation Group Policy Object

This appendix shows an example of creating a software installation policy using Active Directory Group Policy.

To start, the system administrator must create a Distribution Point to store myData installation file (MyData.msi). The distribution point should be a network share location where target users should have read and execute permission.

Next, create a new Group Policy Object under the domain. The security filtering should be set to the target security group that this group policy should be applied.

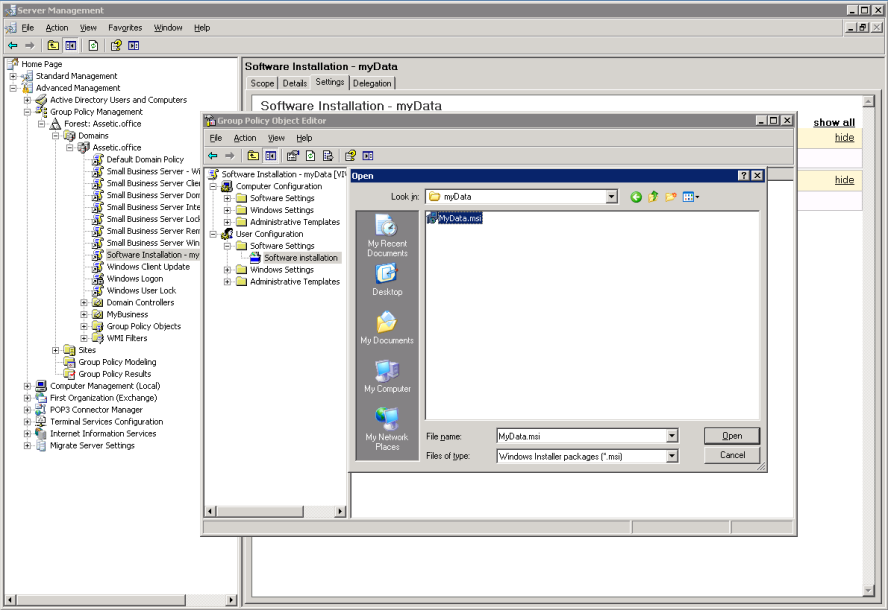

Adding a new application

  1. Open up Group Policy Object Editor
  2. Browse to User Configuration > Software Settings > Software Installation
  3. Create a new Package using the Distribution Point (with Assigned  as Deployment Type)

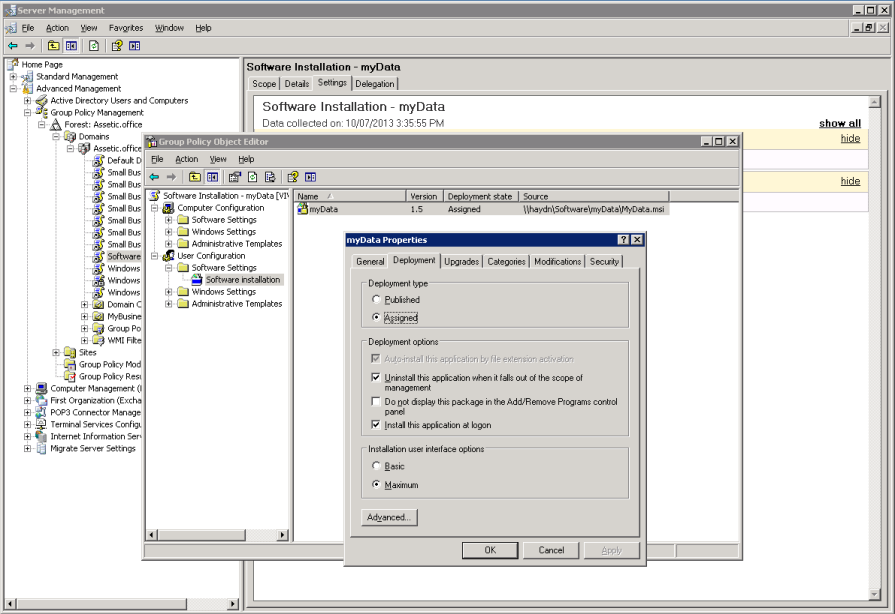

Deployment properties

Use the following settings

Notes

Group Policy Object takes time to propagate into Users and Computers. A user may need to restart the system few times to apply the Group Policy. System Administrator can use the following command to update Group Policy and also check if a policy is correctly applied to users:

  • gpudate (documentation) refreshes group policy on the workstation
  • gpresult (documentation) displays the status of group policy objects (e.g. whether they are applied to user/workstation)

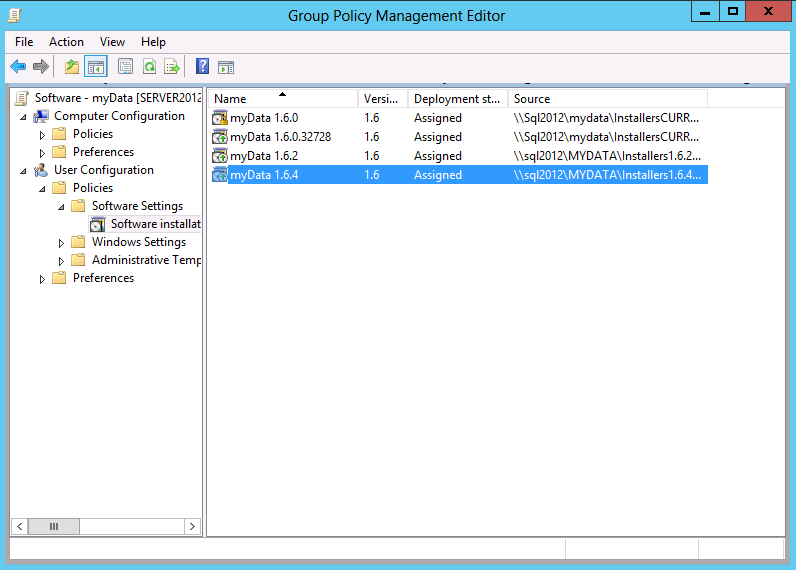

Deploying an update to an existing application

When new software update is released, the system administrator should copy the myData software installer at the Distribution Point (using a different file name or file path to the previous installer) and also trigger an upgrade action. This is done by using Group Policy Editor:

  1. Open up Group Policy Object Editor
  2. Browse to User Configuration > Software Settings > Software Installation
  3. Create a new Package using the Distribution Point (with Assigned  as Deployment Type)
  4. On the deployment tab ensure that 'Install this application at logon' is checked (if you want to trigger the upgrade to occur when the user logs on, instead of when the application is next opened)
  5. On the upgrades tab add the existing myData package to the list (if it is not already selected)
  6. On the upgrades tab, ensure that the 'Required upgrade to existing packages' option is checked
  7. Click ok to complete the process.

Notes

Group Policy Object takes time to propagate into Users and Computers. An user may need to restart their system a few times to apply the Group Policy. System Administrator can use the following command to update Group Policy and also check if a policy is correctly applied to users:

  • gpudate (documentation) refreshes group policy on the workstation
  • gpresult (documentation) displays the status of group policy objects (e.g. whether they are applied to user/workstation)

Training Environment

The need for training and testing is perceptual.



In order to support this Assetic recommends users set up a training environment.

Process overview

  1. Create a new myData Training Database
    • Recommended naming of myData databases

  2. Create a Training Share directory
    • Global Configuration File Example

  3. Create a new Training Configuration file ensuring that it points to the training DB and share directory
    • Global Configuration File Example

  4. Install the new database
    • Software Install and Update

  5. Backup the current myData database

  6. Restore the backup over the training database

You should now have a mirror copy of your live environment
